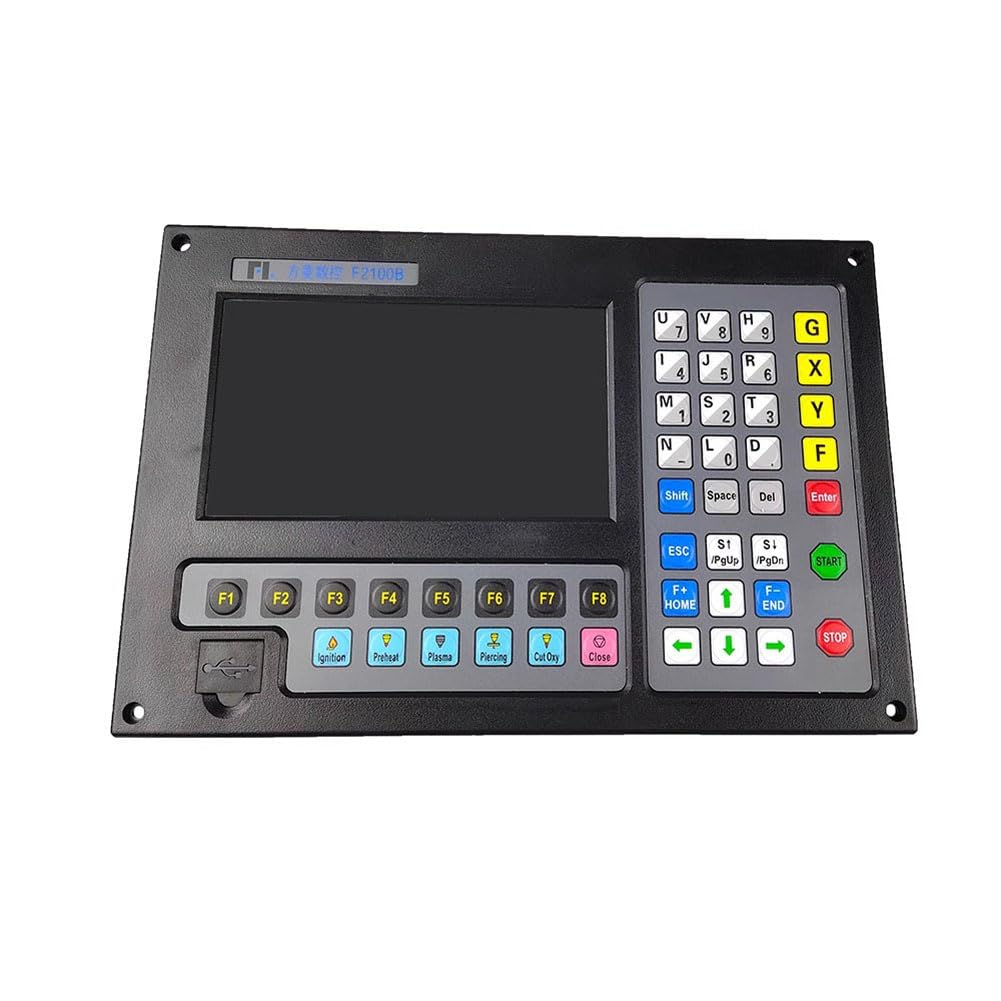

POEIRA 2 Axis Linkage CNC Motion Controller System F2100B 7in HD LCD Display for Plasma Cutting Machine

POEIRA 2 Axis Linkage CNC Motion Controller System F2100B 7in HD LCD Display for Plasma Cutting Machine

The CNC control system is a compact keyboard design, and the manual input file is more comprehensive. Can be used for CNC flame cutting machine equipment and CNC plasma cutting machine equipment, etc. 2 axes linkage CNC controller with 7in HD 800 x 480 LCD display for easy clear and accurate observation. With terminals, plugs and resistor, the connection is quick and easy to operate, has strong practicality. With Chinese, English, Spanish, Portuguese, French, Russian, Danish, Korean, Japanese, etc. language menus, support one click switching. Specifications:
Item Type: Item Type: CNC Control System
Product Material: Product Material: Stainless Steel
Product Model: F2100B
Number of Control Axis: 2 Axis Linkage
Control Accuracy: ±0.001mm
Coordinate Range: ± 99999.99mm
Maximum Pulse Frequency: 200KHz
Maximum Operating Speed: 15meter/min
Maximum Program Lines: 80000 Lines
Maximum Single Program: 4M
Time Class Resolution: 10ms
System Working Power: DC +24V power input, power greater than 80W
Display: 7in 800 x 480 HD 16 million color high brightness LCD display
USB: 1.1 front interface, at least support 16GB U disk
CPU Frequency: 400MHz
User Available Program Space: 256M electronic hard disk
